Design Notes: Proportion and Balance
Proportion is the quiet engineering behind composure. We use a few time-tested guides—the golden ratio, root rectangles, and the rule of thirds—not as commandments, but as starting points. Numbers set the brief; judgment completes it.
Quick take
Ratios are recipes for shape. Golden ≈ 1.6:1 calm; √2 ≈ 1.4:1 composed; √3 ≈ 1.73:1 taut; the rule of thirds places details with quiet confidence.
Ratios at a Glance (Side-by-Side)
| Attribute | Golden Ratio | Root 2 | Root 3 | Rule of Thirds |
|---|---|---|---|---|
| What it is | Long side ≈ 1.618 × short side | Long side ≈ 1.414 × short side | Long side ≈ 1.732 × short side | Face divided into a 3×3 grid |
| How it feels | Effortless, calm, unforced | Composed energy, balanced | Taut elegance, a touch longer | Confident placement, not stiff |
| Typical use | Understated desktop pieces | Footprints/trays that nest cleanly | Long, low display-forward pieces | Locks, plaques, inlays on the lid |
Myth check
There is no magic number. Proportion guides the hand; function has the final word.
Plain-English Primer
- Ratio: a relationship between two sizes. A lid 12" wide and 19" long is roughly 1.6:1—longer than a square, shorter than a strip.

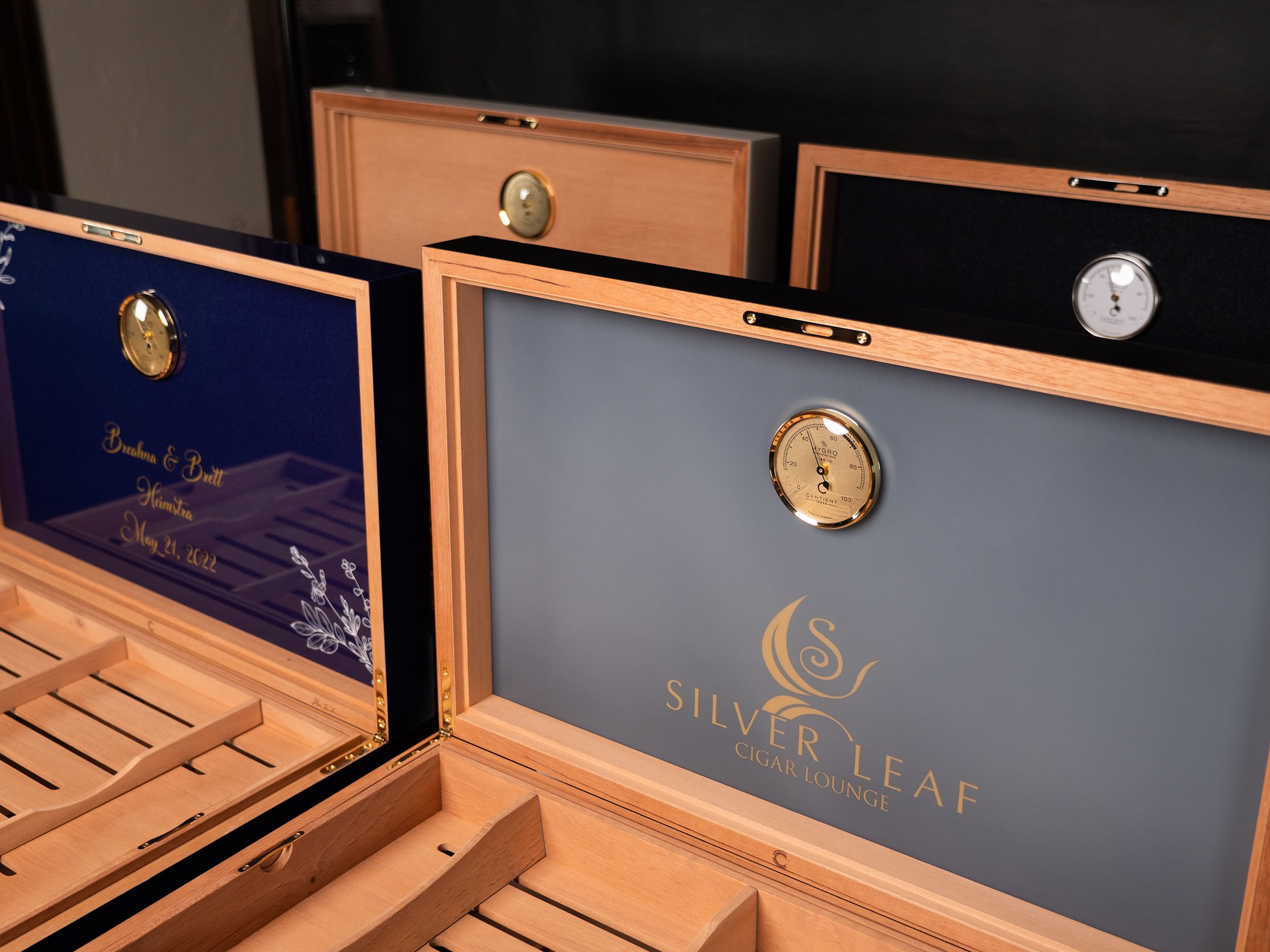

- Optical center: the spot that looks like the middle—usually a touch above true center. That’s where a lock or plaque tends to feel “just right.”
- Reveal: the fine shadow line between lid and body. It separates, lightens the read, and signals precision.
- Border: the picture-frame band around a lid panel or inlay. Its width sets the piece’s tempo.
- Line family: two or three related line widths (heavy / medium / hairline) used consistently so details don’t compete.
From Idea to Object
- Pick the attitude. Calm (golden), composed (√2), or lively (√3).
- Set the footprint. Length and width follow the chosen family.
- Set the height. For a grounded desktop stance, begin around 0.60–0.66 × width.
- Tune the small stuff. Reveal, border widths, and line weights echo the same family for a single visual language.
- Place hardware. Use the thirds grid and the optical center; adjust a few millimeters in hand for perfect feel.
- Resolve the inside. Halves and thirds for trays/dividers so interior rhythm supports exterior calm.
Practical note
If mechanics (hinge arcs, humidification pathways, cigar clearances) demand a change, make it—then re-balance nearby dimensions to keep the family resemblance.
Balance & Visual Weight
- The “middle” isn’t in the middle. Most faces settle when the focal point sits slightly above center.
- Lid and body in conversation. The lid thickness, the shoulder above the reveal, and the border band work together; small adjustments quiet the silhouette.
- Edges as conductors. Crisp edges and disciplined reveals control how light travels—less glare, more composure.
Small Dimensions that Do Big Work
- Reveal: typically 1.5–2.0 mm on compact pieces; 2.0–2.5 mm on larger boxes.
- Top border: a practical starting band is width ÷ 18 to width ÷ 24. Secondary lines step down in a friendly family (about 1 : 0.62 : 0.38).
- Line family: carry two or three weights throughout; consistent spacing keeps calm.
Interiors that Rhyme
- Trays & dividers: two stacked trays (halves) keep order; thirds within each tray create clean lanes without visual clutter.
- Vent arrays: hole spacing and margins echo the same proportion family so ventilation reads as a field—not noise.
Proportion Notes
| Attitude | golden / √2 / √3 |
| Stance | height ≈ 0.60–0.66 × width |
| Micro | reveal 1.5–2.5 mm; border ~ width ÷ 18–24; line family 1 : 0.62 : 0.38 |
| Composition | rule-of-thirds grid; focal point near the optical center |
Bottom Line
Proportion is the quiet structure beneath restraint. We set the geometry with proven guides, then finish by hand until everything feels inevitable—precise without hurry, calm without emptiness.
